Substrate Lifter Assembly
for the PWM32 Spinner Family



The model PWM32 Spin Controller has been upgraded and new product is now called model PWM50. We buy used equipment and factory re-furbish it at times, so the PWM32 may linger in our terminology and sales material for a considerable time. References to the PWM32 will be updated as soon as practical.

See the special page explaining the main differences in the two models.

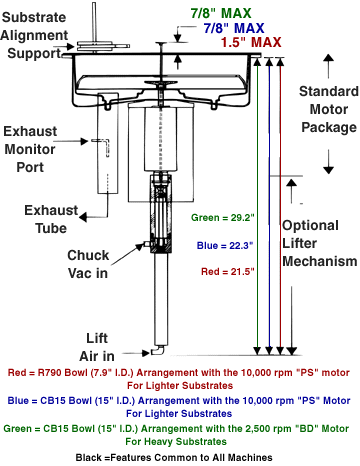

Lifter The Substrate Lifter attaches to the bottom of the three motor package versions of the PWM32 Spinner --driven by Headway's PWM32 Controller. Using this lifter, along with the appropriate chuck/lifter bar assembly, and a substrate alignment tool, a substrate may be properly centered and lowered into the bowl for spinning. After processing, the substrate can be lifted out of the bowl. The lifter works through the spinner shaft.

The Lifter Assembly consists of: controls for up and down speed adjustment are included.

  • Lifter mechanism-mounts to the bottom of the spinner motor
  • Basic substrate alignment support
  • Control box--provides pressure, adjustments for movement speed, & appropriate electrical interface with the PWM32 controller and operator

The Substrate Lifter Assembly Requires The Following Equipment:

  • Optional substrate lifter for the spinner system - see part numbers below
  • PWM32 Spinner System
  • Chuck/lifter bar for the specific substrate(s)
  • Alignment tool appropriate to the substrate(s)

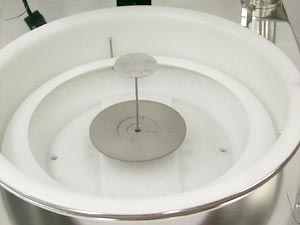

Substrate Lifter Assembly with Large Substrate

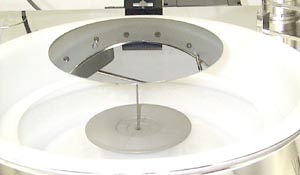

Substrate Lifter Assembly with Large Substrate



Example selection of HRI part numbers:
HRI Part Numbers Spinner Models Substrate Lifter  Accessory
HRI Part Number
115 vac 220 vac
9-22662 9-22308 PWM32-PS-R790 3-22793
9-22663 9-22309 PWM32-PS-CB15 3-22793
9-22666 9-22311 PWM32-BD-CB15 3-22794


The alignment tool for a specific substrate will work on any one of the PWM32 spinners. Each different substrate will require a different alignment tool.

A chuck/lifter bar may work on a range of substrate types and sizes, or some substrates may require a unique design, good for that specific substrate.

Alignment tools and chuck/lifter bars are very easy to change.
